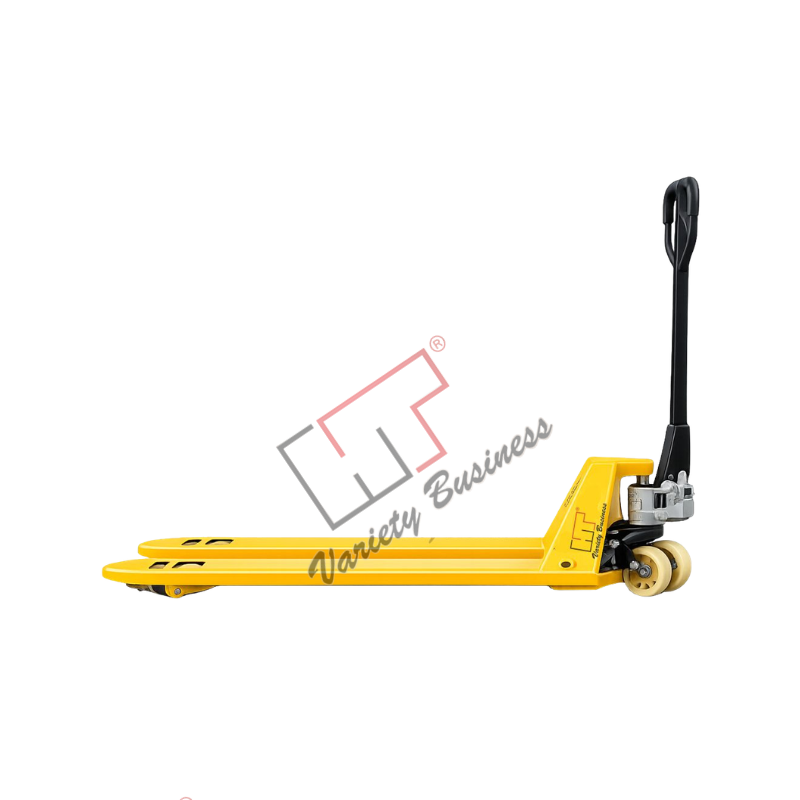

Hydraulic Pallet Truck
The Hydraulic Pallet Truck is a reliable material handling solution designed for smooth transportation of palletized loads. Built for durability and ease of use, it is widely used in warehouses, factories, retail stores, and logistics centers for efficient load movement.
Features
- Heavy-duty hydraulic pump for smooth lifting
- Robust steel construction for long service life
- Ergonomic handle for comfortable operation
- Precision steering for easy maneuverability
- Durable wheels for effortless movement
- Suitable for standard pallet handling
- Low maintenance and dependable performance
| PALLET TRUCK SPECIFICATIONS | 550 × 800 mm | 550 × 1150 mm | 550 × 2000 mm | 685 × 1200 mm |
|---|---|---|---|---|
| Capacity | 2.5 Ton / 3 Ton | 2.5 Ton / 3 Ton / 5 Ton | 2.5 Ton / 3 Ton | 2.5 Ton / 3 Ton |
| Fork Width | 550 mm | 550 mm | 550 mm | 685 mm |
| Fork Length | 800 mm | 1150 mm | 2000 mm | 1200 mm |
| Lowered Fork Height | 85 mm | 85 mm | 85 mm | 85 mm |
| Maximum Lift Height | 200 mm | 200 mm | 200 mm | 200 mm |
| Steering Wheel | 180 × 50 mm PU/Nylon | 180 × 50 mm PU/Nylon | 180 × 50 mm PU/Nylon | 180 × 50 mm PU/Nylon |
| Load Roller | 80 × 70 mm Tandem | 80 × 70 mm Tandem | 80 × 70 mm Tandem | 80 × 70 mm Tandem |
| Steering Angle | 210° | 210° | 210° | 210° |
| Pump Type | Integrated Hydraulic Pump | Integrated Hydraulic Pump | Integrated Hydraulic Pump | Integrated Hydraulic Pump |
| Fork Material | High Strength Steel | High Strength Steel | High Strength Steel | High Strength Steel |
| Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Net Weight (Approx.) | 68 kg | 78 kg | 110 kg | 80 kg |
×
